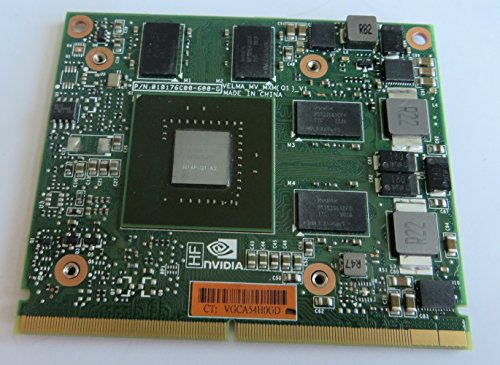

NVIDIA Quadro K2000M

NVIDIA Quadro K2000M Benchmark

NVIDIA Quadro K2000M GPU benchmark, specs and release date - 2 GB NVIDIA Graphics card rating. How good is the Quadro K2000M for gaming?

GPU Benchmark Score

5 %
Bad score from 1 sample
High uncertainty

Ranked 332nd out of 526 in the GPU Database. Tests performed at 1920 x 1080 resolution.

Benchmark Average 10% Low 1% Low
Flux Core
Volumetric ray casting test, a computationally expensive method of rendering high-quality scenes
5 FPS 4 FPS 4 FPS
Electron
Randomly generated noise sphere test
4 FPS 4 FPS 4 FPS
City
Procedurally generated city scene with voxel rendering
5 FPS 4 FPS 4 FPS
Clouds
Real-time noise calculation and ray marching test
2 FPS 2 FPS 2 FPS

Want to compare your GPU against the Quadro K2000M and these results? Download our free and quick PC Performance Test.

Geekbench (CUDA)
Geekbench (CUDA)
Geekbench (Metal)
Geekbench (Metal)
Geekbench (OpenCL)
Geekbench (OpenCL)
Geekbench (Vulkan)
Geekbench (Vulkan)
2,385 1,676 2,575 2,616

Compare these benchmarks and specs using our GPU Comparison Tool.

GPU Comparison

The NVIDIA Quadro K2000M compared against popular alternatives. Compare against more GPUs with our GPU Comparison Tool.

NVIDIA GeForce GTX 1650 Max-Q
34 %
NVIDIA Quadro RTX 3000
31 %
Intel Iris Xe
18 %
NVIDIA Quadro K2000M
5 %
NVIDIA Quadro 3000M
5 %
AMD Radeon R7 M445
3 %
AMD Radeon HD 7670M
2 %

Specifications

Core Clock 745 MHz
Memory Type DDR3
Memory Size 2 GiB
Bus Width 128 bit
Memory Bandwidth 28.8 GB/s
TDP 55 W
Release Date 2012-06-01
DirectX Support 11
OpenGL Support 4.5
Pixel Rate 6 Gigapixels/s
Texture Rate 24 Gigatexels/s
Shading Units 384
Texture Mapping Units 32
Render Output Processors 16

NVIDIA Quadro K2000M

The Quadro K2000M is a GPU from NVIDIA released in 2012. This chip has a bad gaming score at 5% in our GPU benchmark.

The Quadro K2000M has 2 GiB of DDR3 memory, with a total memory bandwidth of 28 GB/s. The memory bus has a width of 128 bits. More memory is beneficial when gaming at high resolutions as the memory needs to store the frame buffer and all the game textures. If you run out of memory, you will experience poor performance as the GPU needs to swap data in and out of the memory as it is used.

In terms of clock speed, the Quadro K2000M GPU core runs at a frequency of 745 MHz. The core clock is directly related to the performance of a GPU, the higher the clock, the more processing can be done per second. A higher clock does not guarantee better performance by itself, this also depends on the number of shading units and other elements of the pipeline.

The performance specs of the Quadro K2000M are this NVIDIA GPU has a pixel rate of 6 Gigapixels/s, the number of pixels the GPU is capable of outputting every second. Furthermore, it has a texture fill rate of 24 Gigatexels/s, the number of pixels the GPU can renderer per second.

As for rendering API support, the Quadro K2000M supports up to DirectX 11. In addition, in cross-platform titles, OpenGL 4.5 features are supported. Newer APIs are usually more efficient, allowing for better performance in games and better graphical effects.

The raw technical specs of the Quadro K2000M are: 384 total shading units (general purpose parallel cores capable of processing different aspects of the graphics pipeline), 32 texture mapping units (specialised processors for texture operations, this determines the texture rate) and 16 render output processors or units (the final step in the rendering pipeline, responsible for rasterising the image)

Power and thermals for the NVIDIA Quadro K2000M are a TDP (Thermal Design Power) of 55 watts. This measures the amount of heat the GPU produces when running at 100%. This isn't a measure of power consumption, but it's a good estimate.

To figure out your graphics card specs and performance, download our free GPU Benchmark utility.
