NVIDIA Quadro K6000

NVIDIA Quadro K6000 Benchmark

NVIDIA Quadro K6000 GPU benchmark, specs and release date - 12 GB NVIDIA Graphics card rating. How good is the Quadro K6000 for gaming?

GPU Benchmark Score

39 %
Good score from 1 sample
High uncertainty

Ranked 93rd out of 526 in the GPU Database. Tests performed at 1920 x 1080 resolution.

Benchmark Average 10% Low 1% Low
Flux Core
Volumetric ray casting test, a computationally expensive method of rendering high-quality scenes
44 FPS 32 FPS 31 FPS
Electron
Randomly generated noise sphere test
34 FPS 34 FPS 35 FPS
City
Procedurally generated city scene with voxel rendering
37 FPS 33 FPS 34 FPS
Clouds
Real-time noise calculation and ray marching test
19 FPS 18 FPS 19 FPS

Want to compare your GPU against the Quadro K6000 and these results? Download our free and quick PC Performance Test.

Geekbench (CUDA)
Geekbench (CUDA)
Geekbench (Metal)
Geekbench (Metal)
Geekbench (OpenCL)
Geekbench (OpenCL)
Geekbench (Vulkan)
Geekbench (Vulkan)
17,571 11,048 17,636 22,673

Compare these benchmarks and specs using our GPU Comparison Tool.

GPU Comparison

The NVIDIA Quadro K6000 compared against popular alternatives. Compare against more GPUs with our GPU Comparison Tool.

NVIDIA GeForce GTX 1070
61 %
NVIDIA GeForce GTX 1060 6GB
42 %
AMD Radeon RX 5300
39 %
NVIDIA Quadro K6000
39 %
AMD Radeon RX 580
37 %
AMD Radeon RX 480
36 %
NVIDIA GeForce GTX 780
30 %

Specifications

Core Clock 797 MHz
Boost Clock 902 MHz
Memory Type GDDR5
Memory Size 12 GiB
Bus Width 384 bit
Memory Bandwidth 288.4 GB/s
TDP 225 W
Floating Point Performance 5.2 TFLOPS
Release Date 2013-07-23
PCIe Revision 3.0
DirectX Support 11.2
OpenGL Support 4.5
Pixel Rate 54 Gigapixels/s
Texture Rate 216 Gigatexels/s
Shading Units 2880
Texture Mapping Units 240
Render Output Processors 48

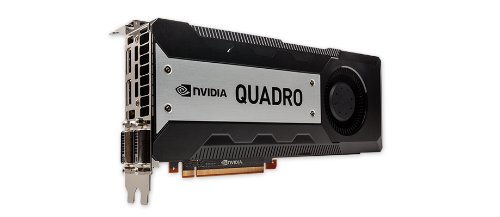

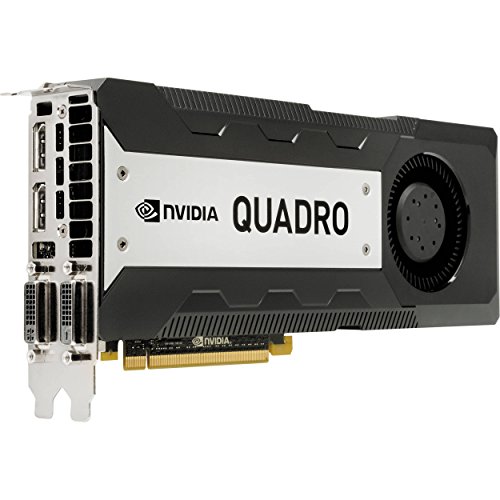

NVIDIA Quadro K6000

The Quadro K6000 is a GPU from NVIDIA released in 2013. This chip has a good gaming score at 39% in our GPU benchmark.

The Quadro K6000 has 12 GiB of GDDR5 memory, with a total memory bandwidth of 281 GB/s. The memory bus has a width of 384 bits. More memory is beneficial when gaming at high resolutions as the memory needs to store the frame buffer and all the game textures. If you run out of memory, you will experience poor performance as the GPU needs to swap data in and out of the memory as it is used.

In terms of clock speed, the Quadro K6000 GPU core runs at a frequency of 797 MHz and if power and temperature permits, it can boost up to 902 MHz. The core clock is directly related to the performance of a GPU, the higher the clock, the more processing can be done per second. A higher clock does not guarantee better performance by itself, this also depends on the number of shading units and other elements of the pipeline.

The performance specs of the Quadro K6000 are a raw floating-point performance of 5.2 TFLOPS : this represents the number of floating point (decimal) operations completed per second. In addition, this NVIDIA GPU has a pixel rate of 54 Gigapixels/s, the number of pixels the GPU is capable of outputting every second. Furthermore, it has a texture fill rate of 216 Gigatexels/s, the number of pixels the GPU can renderer per second.

As for rendering API support, the Quadro K6000 supports up to DirectX 11.2. In addition, in cross-platform titles, OpenGL 4.5 features are supported. Newer APIs are usually more efficient, allowing for better performance in games and better graphical effects.

The raw technical specs of the Quadro K6000 are: 2880 total shading units (general purpose parallel cores capable of processing different aspects of the graphics pipeline), 240 texture mapping units (specialised processors for texture operations, this determines the texture rate) and 48 render output processors or units (the final step in the rendering pipeline, responsible for rasterising the image)

Power and thermals for the NVIDIA Quadro K6000 are a TDP (Thermal Design Power) of 225 watts. This measures the amount of heat the GPU produces when running at 100%. This isn't a measure of power consumption, but it's a good estimate.

To figure out your graphics card specs and performance, download our free GPU Benchmark utility.
