NVIDIA Quadro 4000M

NVIDIA Quadro 4000M Benchmark

NVIDIA Quadro 4000M GPU benchmark and specs - 2 GB NVIDIA Graphics card rating. How good is the Quadro 4000M for gaming?

GPU Benchmark Score

6 %
Bad score from 1 sample
High uncertainty

Ranked 308th out of 526 in the GPU Database. Tests performed at 1920 x 1080 resolution.

Benchmark Average 10% Low 1% Low
Flux Core
Volumetric ray casting test, a computationally expensive method of rendering high-quality scenes
7 FPS 5 FPS 5 FPS
Electron
Randomly generated noise sphere test
5 FPS 5 FPS 5 FPS
City
Procedurally generated city scene with voxel rendering
5 FPS 5 FPS 5 FPS
Clouds
Real-time noise calculation and ray marching test
3 FPS 2 FPS 3 FPS

Want to compare your GPU against the Quadro 4000M and these results? Download our free and quick PC Performance Test.

Geekbench (OpenCL)
Geekbench (OpenCL)
4,216

Compare these benchmarks and specs using our GPU Comparison Tool.

GPU Comparison

The NVIDIA Quadro 4000M compared against popular alternatives. Compare against more GPUs with our GPU Comparison Tool.

NVIDIA Quadro K4000
8 %
Intel UHD 770
7 %
AMD Radeon R7 430
6 %
AMD Radeon HD 8790M
6 %
NVIDIA Quadro 4000M
6 %
AMD Radeon R7 250
6 %
AMD Radeon R9 M375X
3 %

Specifications

Core Clock 475 MHz
Memory Type GDDR5
Memory Size 2 GiB
Bus Width 256 bit
Memory Bandwidth 80 GB/s
TDP 100 W
DirectX Support 11
OpenGL Support 4.5
Pixel Rate 7 Gigapixels/s
Texture Rate 27 Gigatexels/s
Shading Units 336
Texture Mapping Units 56
Render Output Processors 32

NVIDIA Quadro 4000M

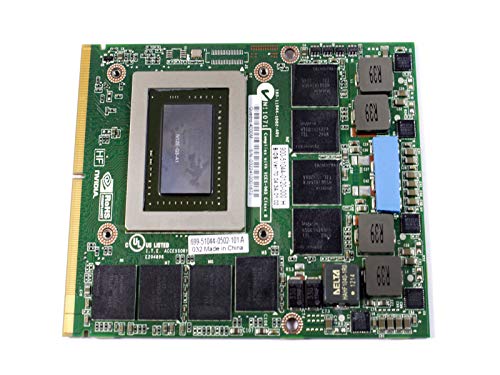

The Quadro 4000M is a GPU from NVIDIA. This chip has a bad gaming score at 6% in our GPU benchmark.

The Quadro 4000M has 2 GiB of GDDR5 memory, with a total memory bandwidth of 78 GB/s. The memory bus has a width of 256 bits. More memory is beneficial when gaming at high resolutions as the memory needs to store the frame buffer and all the game textures. If you run out of memory, you will experience poor performance as the GPU needs to swap data in and out of the memory as it is used.

In terms of clock speed, the Quadro 4000M GPU core runs at a frequency of 475 MHz. The core clock is directly related to the performance of a GPU, the higher the clock, the more processing can be done per second. A higher clock does not guarantee better performance by itself, this also depends on the number of shading units and other elements of the pipeline.

The performance specs of the Quadro 4000M are this NVIDIA GPU has a pixel rate of 7 Gigapixels/s, the number of pixels the GPU is capable of outputting every second. Furthermore, it has a texture fill rate of 27 Gigatexels/s, the number of pixels the GPU can renderer per second.

As for rendering API support, the Quadro 4000M supports up to DirectX 11. In addition, in cross-platform titles, OpenGL 4.5 features are supported. Newer APIs are usually more efficient, allowing for better performance in games and better graphical effects.

The raw technical specs of the Quadro 4000M are: 336 total shading units (general purpose parallel cores capable of processing different aspects of the graphics pipeline), 56 texture mapping units (specialised processors for texture operations, this determines the texture rate) and 32 render output processors or units (the final step in the rendering pipeline, responsible for rasterising the image)

Power and thermals for the NVIDIA Quadro 4000M are a TDP (Thermal Design Power) of 100 watts. This measures the amount of heat the GPU produces when running at 100%. This isn't a measure of power consumption, but it's a good estimate.

To figure out your graphics card specs and performance, download our free GPU Benchmark utility.
